288
SWITCHES

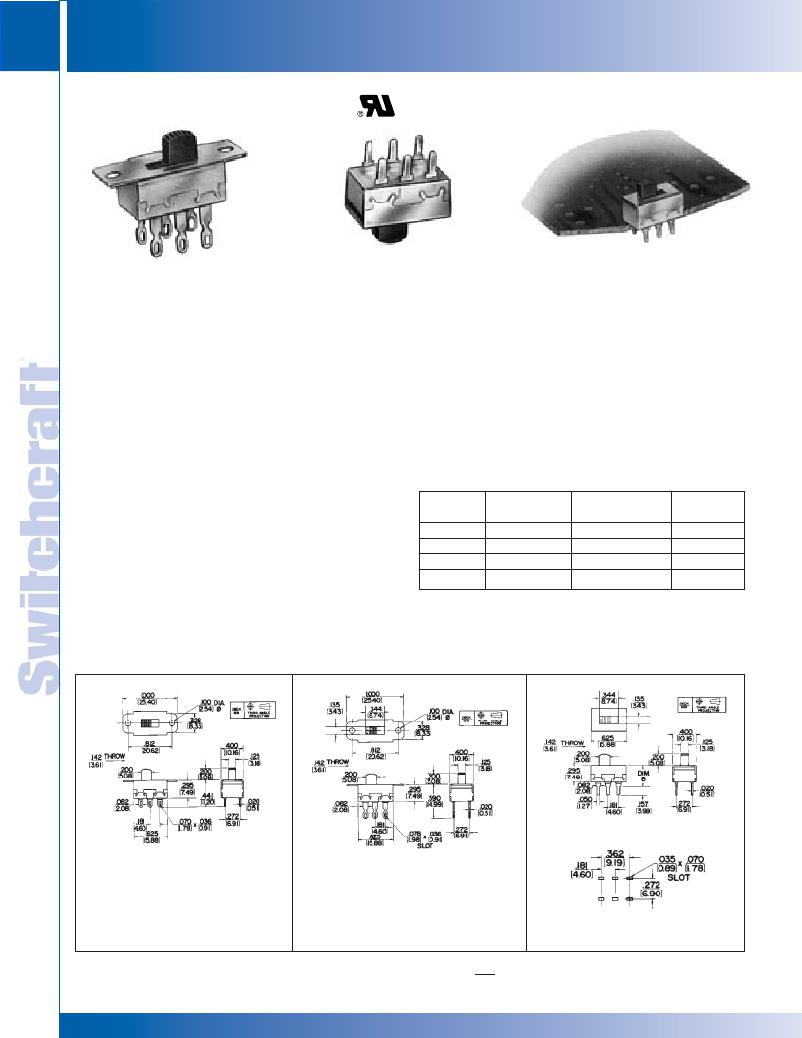

MINIATURE SLIDE SWITCHES – SERIES 56200 AND C56200 PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
MINIATURE SLIDE SWITCHES
SPECIAL ORDER
56206L1
C56206L2
C56206L2
SERIES 56200, C56200 - 2 POSITION
“Tini-Slide” slide switches have Exclusive SNAP SLIDE lifting
and wiping action. This unique, positive action combines the
best features of “snap” and “slide” movements into the design
of a superior switch. Pitting, burning and contamination are
minimized. Contacts lift through an air gap, drop on stationary
contacts, and slide, wiping themselves clean. Subminiature
size is ideal where useable space is at a premium.
SPECIFICATIONS
Contact Ratings: 0.5A, 125V AC or DC, non-inductive.
Minimum life at rated load 6000 cycles. Resistance after
6000 cycles at rated load is 50 milliohms maximum.
Terminals: PC Type - silver-plated. Each terminal has
SPECIAL ORDER FEATURES
1. .2" (5.08 mm) high knobs are standard; other heights
available on special order. See page 283.
2. Red and white knobs available.
3. Mounting flanges with .1" (2.54 mm) diameter holes on
C56206L1 or C56206L2. Flange holes tapped #4-40 on
56206L1 or 56206L2 (where production quantities warrant).
4. UL stamped on special order.
PART NUMBERS
standoff shoulder for stable mounting and space for board
clearance.
Mounting: Flange, (56206L1 and 56206L2) - .1" (2.54 mm)
holes for screw or mounting rivet. PC - Direct mounting to PC
boards up to .093" (2.36 mm) thick.
Knob: Molded thermoplastic (UL 94V-1).
Terminal Board: Molded thermoplastic (UL 94V-0).
Part
Number
56206L1
56206L2
C56206L1
C56206L2
Dimension "B"
Inch (mm)
-
-
.573 (14.55)
.352 (8.94)
Description
DPDT, Locking
DPDT, Locking
DPDT, Locking
DPDT, Locking
Schematic
2-III
2-III
2-III
2-III
Terminals: Copper alloy, silver-plated.
Contact Sliders: Copper alloy.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
C56206L1 & 2
56206L2
56206L1
RECOMMENDED PC BOARD
LAYOUT (Component Side)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
